1. Introduction
Ethernet
and PoE connections both restrict cable distances to 100 meters between network
ports. To overcome this distance limit, network installers can simply connect
an PoE Extender in-line with the Cat-5e or Cat-6 calbe(Outdoor type).
With
Gigabit PoE Extender, PDs (such as IP Security Cameras,wireless access points) can be installed at
greater distances than 100 meters from one another. By connecting PoE Extender
for every extra 100 meters of cable, both Ethernet and PoE can be extended to
200 meters,depending on PDs power
required and power source.

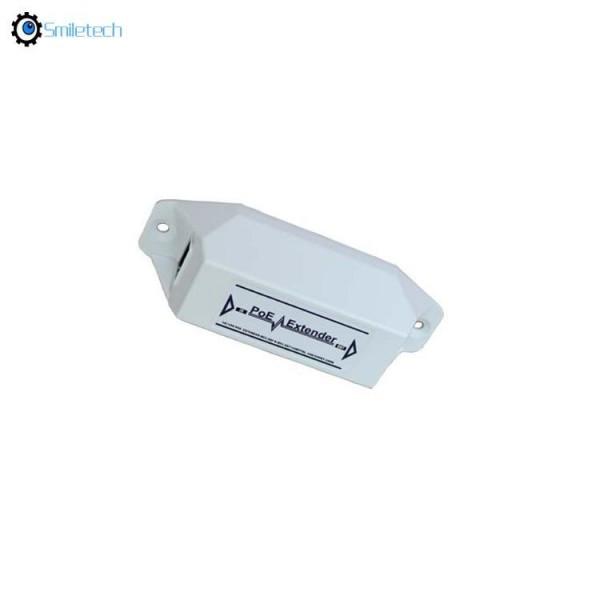

Gigabit
PoE Extender does not require any additional power supply and the connected PDs
is fed by an single PoE switch or mid-span, which simplifies installation. PoE
Extender offers two Gigabt Ethernet ports, which are both configured
automatically for link speed, duplex and crossover and the full-rate network
throughput is main-tained.PoE in connection PoE Switch, 12.36 or 45.78 powered
support, support IEEE802.3af & at the
power supply, PoE out for the supply terminal 1 Gigabit, PoE total power can
reach 25W (PoE Switch need to provide IEEE802.3at power).
2. Product Features:
Compatible with
IEEE802.3af and IEEE802.3at
Extends the range of
PoE and Gigabit Ethernet an additional 100 meters
No additional power supply is required
Automatically detects and protects PoE equipments from being damaged by
incorrect installation
Gigabit Full-rate network throughout the
whole extended distance
Wall-Mountable design
Easy plug-and-play installation
Complies with IP66 (Support Outdoor rain
prevention,need outdoor
waterproof UTP cable)
3.Technical parameter:
|
Item
|
Description
|
|
No.
of channels
|
1(PoE
IN) into 1(PoE OUT)
|
|
Pass
Through Data Rates
|
10/100/1000
Mbps half/full duplex
|
|
Power
over Ethernet input
|
Pin
Assignment and Polarity:
Both
1/2 , 3/6 and4/5 , 7/8
|
|
Power
over Ethernet Output
|
Pin
Assignment and Polarity:
1/2
(+), 3/6 (-)
Output
Power: up to 25W
|
|
Connectors
|
RJ-45,
EIA 568A and 568B
|
|
